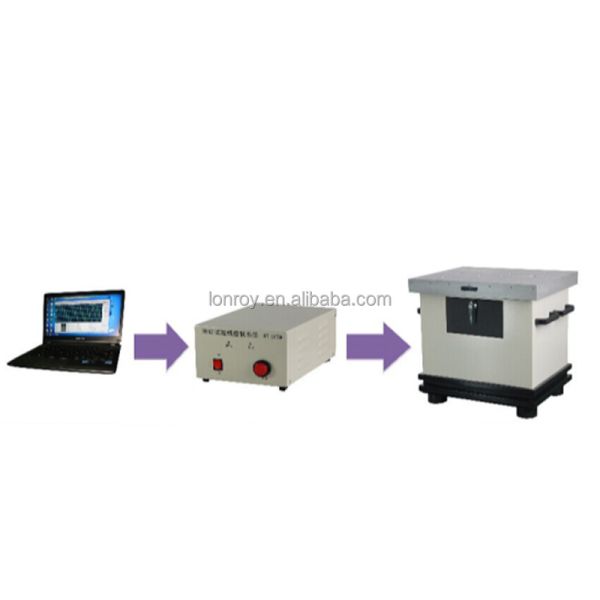

LR-H001 Mechanical Type Vertical Vibration Tester/Test Machine Equipment Vibration Test Machine Vibration Test Machine

LR-H001 Mechanical Type Vertical Vibration Tester/Test machine/Test equipment

Specification

Product overview:Mechanical vibration test series are widely used and defense, aerospace, communication, electronics, automobile, household electrical appliances and other industries.Early failure, this type of equipment is used for assessment of simulating actual working condition and structure strength test, the product application scope is broad and wide applicable, test effect is remarkable, and reliable. IEC 60065 clause 12.1.2 vibration test

Humanized operate and control, using professional measurement and control software, make the equipment working more stable, more reliable

The whole machine adopts complex industrial material manufacturing, precision machining, silent

Panel using magnesium aluminum alloy materials, is completely isolated magnetic field interference, effectively prevent the analyte magnetization

Frequency sweep and constant frequency operation mode, to adapt to the testing requirements of different industries

High precision frequency output, synchronous excitation at four o 'clock, mesa vibration evenly

Magnetic resistance and strong anti-jamming capability

Have a safe and reliable protection

The machine body is made of high efficiency low noise fan cooling to ensure long run continuously

With constant vibration amplitude vibration and constant acceleration

LR-H001 Mechanical Type Vertical Vibration Tester/Test machine/Test equipment

Technical parameters

Frequency range(Hz):5~60

Frequency sweep range(Hz): 5~60

Maximum acceleration(m/s²):320

The maximum load test(kg): 60

The largest displacement of no-load(mm_p-p): 0~4.5(Adjustable, constant amplitude)

The vibration waveform: Sine wave

The axial vibration:vertical

Vibration mode:Mechanical vibration

Cooling way:Air cooling

Working temperature requirements(℃): 0~+40

Working humidity requirements(%RH):0-90,No condensation

The power supply requirements:Single phase AC 220V/50Hz ±10%

The system power consumption(KVA):2.2

Countertop materials:Magnesium alloy casting

Mesa screw size(standard):M8(Can be customized)

Mesa screw number:32pcs(Can be customized)

total weight(kg):90

worktable sizeW.D.H(mm): 700×560×22

Machine body sizeW.D.H(mm):700×560×680

LR-H001 Mechanical Type Vertical Vibration Tester/Test machine/Test equipment

Vibration controller parameters

Products overview: adopt international advanced distributed system organization system, 32-bit floating point DSP processor, the vibration control system technology performance is further improved.

Modularization and low noise design technology, installed in the control box, connected by usb and computer simple, application software based on Windows 8, USES the adaptive control algorithm of the powerful function of control software.
High control precision, wide dynamic range.

System has a fully automatic safety test system, in order to protect the test equipment and the normal use of the specimens.

Early experiments: on, press automatic test system circuit connection status, clew connection status.

Out-of-tolerance alarm and interrupt: system can automatically detect out-of-tolerance alarm and interrupt automatically protect downtime

System real time record run curve, and automatically saved.

Built-in powerful database, high precision amplitude adjust predictors, effectively improve the work efficiency.

Technical parameters
