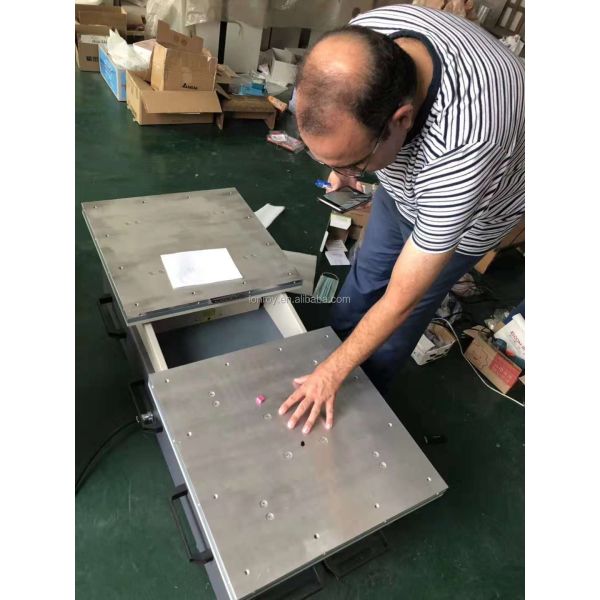

Horizontal and Vertical Vibration Tester/ Vibration Testing Table/ Low Frequency Vibration Tester Vibration Test

Introduction:

Electromagnetic type vibration tester is used widly in national defense,aerospace, communication,electron,car,household appliances industry.This tester is used to find early stage stoppage, simulate actual working condition and structure strength testing.

Character:

1. Hommization operation and controlling,adopt professional testing software,make the machine more stable and reliable.

2. The machine material is compound type industrial materials,precision finishing.

3. Two testing models,sweep frequency and fixed-frequency ,suitable for different testing requirements of different industries.

4. High anti-jamming capacity.

5. Safe and reliable protecting function.

Specification:

Power: AC 220V/50Hz ±2%

Working environment: 0~+45℃

Max load(kg): 40

Frequency modulation(Hz): 3~200

Sweep frequency range(Hz): 3~200

Displacement amplitude with no load(mm): 0~5

Vibration methods: Vertical,horizontal

Timer setting(s): 1~350000

Testing table sizeL.W.H(mm): 450×450×43

Platform sizeL.W.H(mm): 1300×570×450

Control cabinet sizeL.W.H(mm): 380×255×170

Rate of power(KVA): 2.8

Setting methods: Chinese English menu,computer controlling,professional testing software,can observe testing process and data output.

Testing curve recording funciton:record and deal with testing data,can be stored or printed.

Showing funciton: Dynamic testing curve,multistage and related data.
