Reciprocating Friction Test Machine with 0 - 10Hz Repetitive Frequency 800N Maximum Test Force and 0 - 20mm Repetitive Stroke

Name: Reciprocating Friction Test Machine with 0 10Hz Repetitive Frequency 800N Maximum Test Force and 0 20mm Repetitive Stroke
Brand: Lonroy
Price: 1 USD

Brand Name : Lonroy

Model Number : LR-HGT

Certification : ISO ASTM CE

Place of Origin : China

MOQ : 1

Price : Negotaible

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Delivery Time : 5-8 work days

Packaging Details : Wooden package

Maximum test force : 800N ±1%

Repetitive frequency : 0 - 10 Hz

Repetitive stroke : 0 - 20 mm

Test temperature : Room temp to 1200℃ ±2℃

Linear speed : 0.01 - 100 mm/s ±5%

Wear measurement resolution : 0.001mm

Contact Now

Reciprocating Friction Lab Test Machine 0 - 10Hz Repetitive Frequency Lab Test Machine

High-temperature Reciprocating Friction Laboratory Machine

The reciprocating friction and wear testing machine is a fully upgraded product designed for researching the friction performance of materials or surface coatings. This widely used equipment features stable and reliable adjustment of reciprocating stroke, wide adjustment range, high measurement accuracy of friction force, and diverse testing forms.

The main friction pairs of this machine adopt standard ball friction and configurable pin-disc friction, enabling various choices of friction pairs including reciprocating and rotating of ball-disc-pin-disc, as well as ring-to-ring friction.

The testing machine utilizes computer detection and control with dedicated friction and wear testing software developed by Lonroy based on high-speed industrial control. This software can draw real-time curves of various parameters with point acquisition frequency up to 100 KHZ, effectively achieving dynamic and accurate detection of the process while improving measurement accuracy of friction force and test force.

Key features include:

Parameter over-limit preset shutdown or alarm protection
Ingenious design for convenient installation and debugging
Clear and user-friendly interface for easy operation
Enhanced measurement accuracy for friction force and test force

Technical Specifications

Item	Parameter
1	Maximum test force: 800N, with an error of ±1%
2	Loading method: Closed-loop software, automatic loading
3	Maximum force value of the force sensor: 100kg
4	Repetitive frequency: 0 - 10 Hz
5	Linear speed: 0.01 mm/s - 100 mm/s, calculated based on a stroke of 5 mm, adjustable, with an error of ±5%
6	Friction form: Face-to-face friction between pins and discs
7	Repetitive stroke: 0 - 20 mm
8	Test temperature: Room temperature to 1200 ℃, with an error of ±2 ℃, multi-stage program setting (optional module)
9	Temperature measurement method: Thermocouple
10	Online grinding measurement: Magnetic-electromagnetic induction measurement (optional module)
11	Measurement resolution of wear amount: 0.001mm
12	Lift height: 0 - 50mm
13	Guide rail accuracy: △C no more than 5μm, △D no more than 8μm
14	Time display method and control: 10S - 9999H (frequency and reciprocation count mode)
15	Data processing: One set of dedicated computer processing system is standardly equipped
16	Method of measuring friction force: Strain measurement

Product Tags:

Reciprocating Friction Lab Test Machine

Lab Test Machine 10Hz

Quality Reciprocating Friction Test Machine with 0 - 10Hz Repetitive Frequency 800N Maximum Test Force and 0 - 20mm Repetitive Stroke for sale

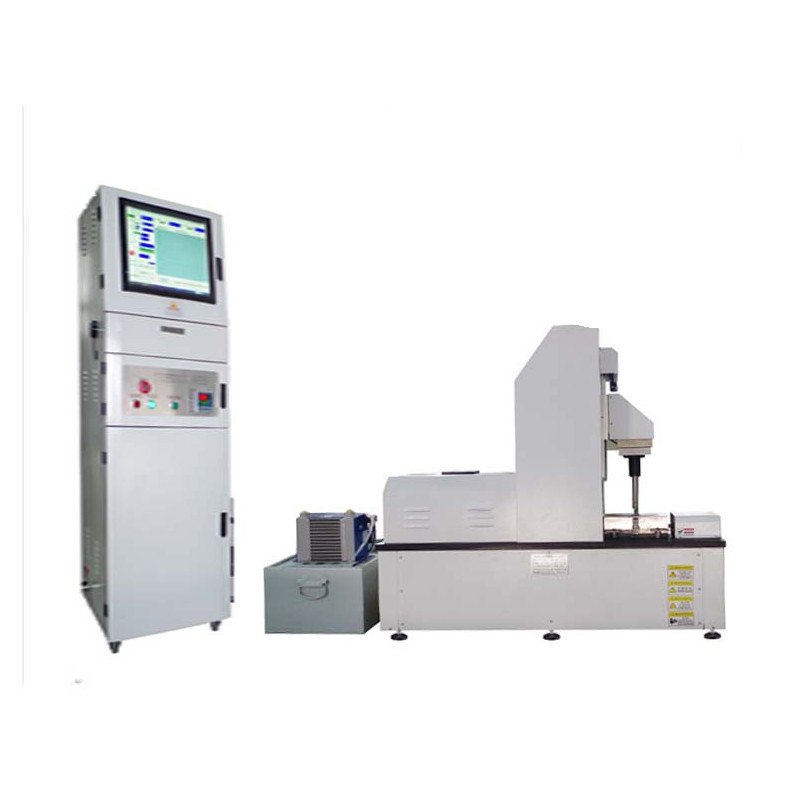

Reciprocating Friction Test Machine with 0 - 10Hz Repetitive Frequency 800N Maximum Test Force and 0 - 20mm Repetitive Stroke Images
