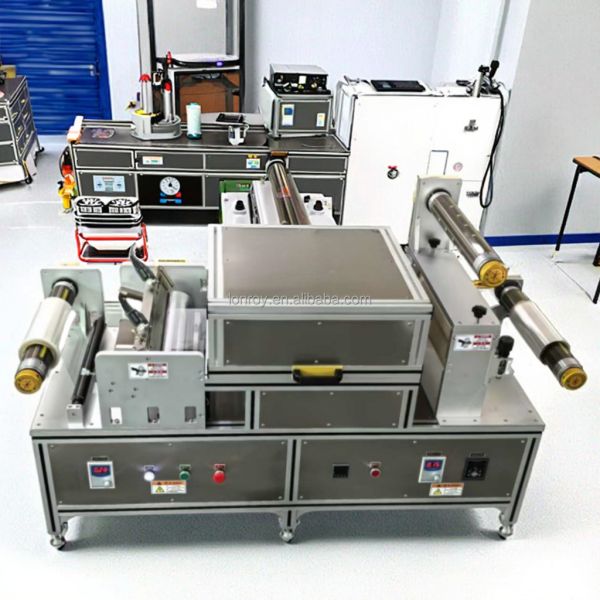

Roll oll Automatic Coater with Drying Oven High Accuracy Lab Scale Digital Automatic Roll-On Roll-Off Coating Machin

Name: Roll oll Automatic Coater with Drying Oven High Accuracy Lab Scale Digital Automatic RollOn RollOff Coating Machin
Brand: LONROY
Price: 1 USD

Quality Roll oll Automatic Coater with Drying Oven High Accuracy Lab Scale Digital Automatic Roll-On Roll-Off Coating Machin for sale

Type : Testing Machine

Accuracy : /

Brand Name : LONROY

Place of Origin : Guangdong, China

Application : Auto Testing

customized support : OEM, ODM, OBM

power : 6KW, 6KW

Protection Class : Ip56

Voltage : 220 V

warranty : 1 Year

Coating width : 380mm

Rewind and unwind diameter : 300mm

Power supply : AC220V

MOQ : 1

Contact Now

Roll to Roll Automatic Coater with Drying Oven High Accuracy Lab Scale Digital Automatic Roll-On Roll-Off Coating Machine

Technical Specification

Product name	Roll to roll coating machine
Applications	Mobile phone case, automotive supplies, special film, various films
Substrates	PET
Control system	independent research and development
Coating width	380mm
Coating methods	The Doctor blade coatinge
Coating thickness	0.01-1 mm
Coating accuracy	Uniformity ±3%
Thickness adjustment	Digital micrometers
Coating speed	0.5-3 m/min (speed adjustment according to glue drying condition)
Drying tunnel length	1 meter
Solution feeding methods	Manual gluing
Rewind and unwind diameter	300mm
Rewind and unwind airshafts	3 inch airshaft (tile type)
UV curing length	0
Post lamination	Rubber roller coating
Tension control system	Adjustable
Power supply	AC220V
Power	6KW
