IEC 61032 Test Finger Probe IEC 60065 EN Testing Pointer Sensor Lab Probe Small Meter

Brand Name : Lonroy

Place of Origin : China

MOQ : 1

Price : Negotaible

Stop face diameter : 125mm

Tip to stop distance : 100mm

Nodular finger length : 100mm

First finger length : 30mm

Middle finger length : 30mm

Last finger length : 40mm

Dam-board diameter : 125mm

Test thrust : 30 ± 3N

Handle material : Nylon

Stop face material : Nylon

Finger material : Stainless steel

Baffle entry limit : 20mm-50mm

Compliance standard : IEC 61032

Precision machining : Yes

Integral palm simulator : Yes

Certification : ISO ASTM CE

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

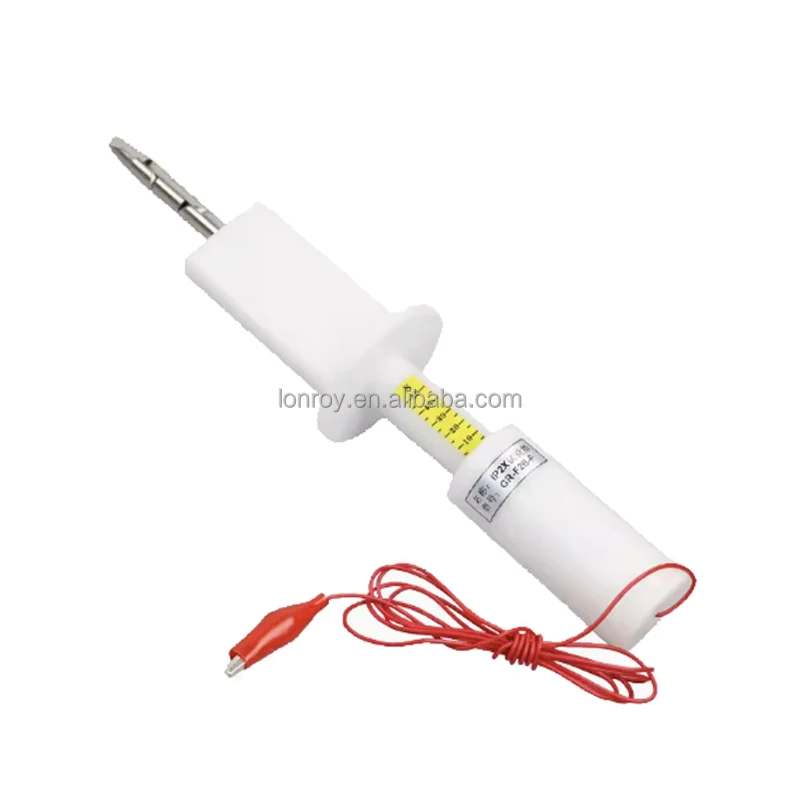

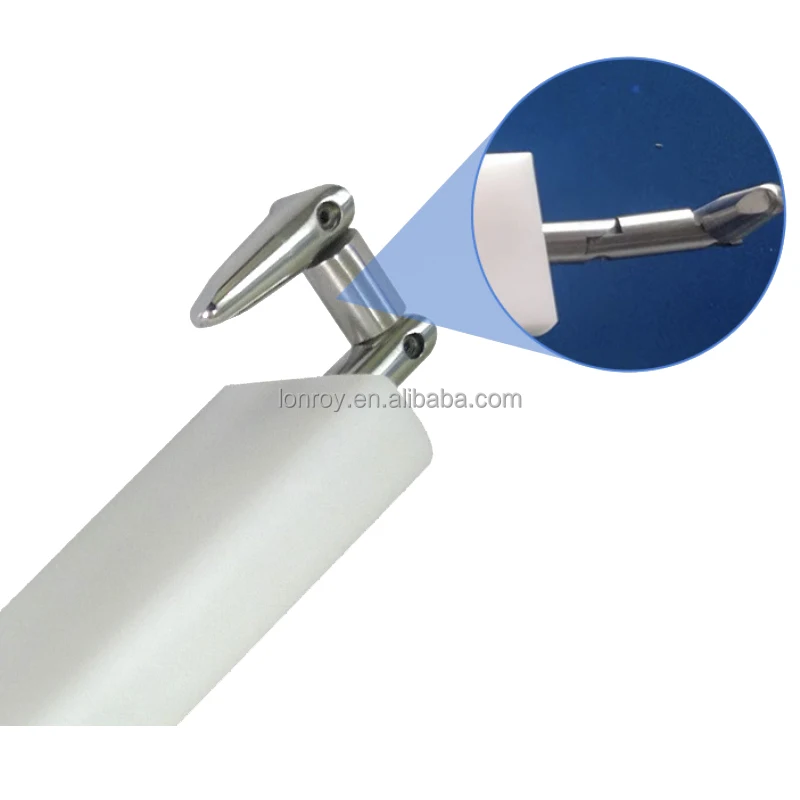

IEC 61032 Test Finger Probe IEC 60065 EN Testing Pointer Sensor Lab Probe
The IEC 61032 Test Finger Probe is an essential tool for protection against electric shock testing in household and similar electrical appliances. Manufactured to exacting standards, this precision instrument ensures compliance with international safety regulations.
Key Features
  • Compliant with IEC 61032, IEC 60065, and EN Standards
  • Essential appliance for electric shock prevention testing
  • Features a circular stop face with 125mm diameter
  • 100mm distance between tip and stop face
  • International standard test finger required by most IEC and UL standards
  • Constructed with precision-machined stainless steel finger and nylon handle/stop face
  • Includes integral palm simulator
Usage Instructions
  • The joint portion must not touch live or hazardous parts and cannot enter 20mm-50mm baffles
  • Test B requires 30 ± 3N thrust (typically used with force gauge)
  • For electric shock testing: requires wiring and power supply (mains) configuration with lamp unit
Note: This precision stainless steel test probe requires careful handling and regular maintenance to ensure optimal performance.
Technical Specifications
Parameter Measurement
Nodular Finger Length 100mm
The First Finger Length 30mm
The Middle Finger Length 30mm
The Last Finger Length 40mm
Dam-board Diameter 125mm
Compliance Standards
IEC61032, IEC60065, IEC60335-1, IEC60884-1
