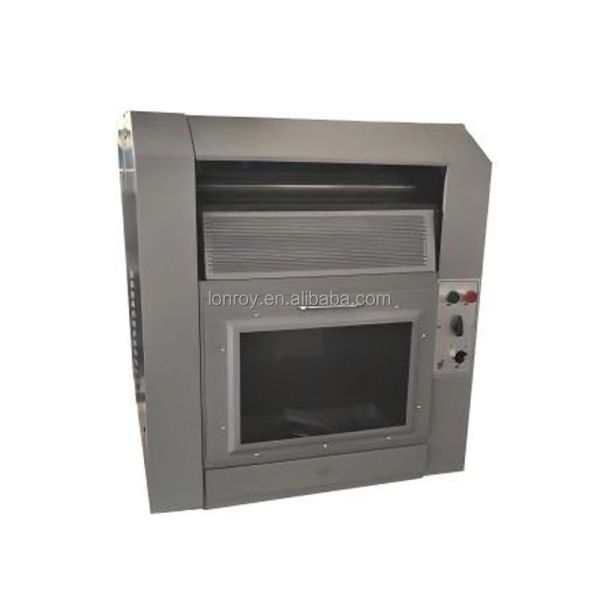

Wool Fiber Impurity Tester Wool Fiber Impurity Analyzer Laboratory Wool Impurity Detection Equipment

Type : Testing Machine

Accuracy Class : High Accuracy

Accuracy : ---

Brand Name : LONROY

Place of Origin : Guangdong, China

Application : Auto Testing, Laboratory Testing, Lab Testing

customized support : OEM, ODM, OBM

power : ---

Protection Class : Ip56

Voltage : 220V Electrical Equipment

warranty : 1 Year

Product name : Wool Fiber Impurity Analyzer

Model Number : LR-FZ101

Size(length * width * height) : 1019*715*874mm

Machine weight : 280kg

MOQ : 1

Contact Now

Wool Fiber Impurity Tester Wool Fiber Impurity Analyzer Laboratory Wool Impurity Detection Equipment

Product Description

Application Scope

The wool fiber impurity analyzer is a key piece of equipment for testing wool fibers in the textile industry and quality inspection departments. This equipment features a compact structure, convenient operation, stable performance, few wearing parts, and easy maintenance, making it the preferred equipment for various textile factories and laboratories. It is used for impurity analysis of loose wool fibers with a length of 35mm and above.

Relevant Standards

Complies with GB18267-2013, GB/T6499-2022, DB15/T2105-2021, GB1523 and other standards.

Two Motor Drives

1. Carding roller and fan operation: Motor model JFO2-21-4, Power 1.1 kW

Speed: 1410 rpm (full load)

2. Feeding roller operation: Motor model 90YYJS90-4, Power 0.09 kW, Speed 1250 rpm

Wool Fiber Impurity Tester Wool Fiber Impurity Analyzer Laboratory Wool Impurity Detection Equipment

Technical Specification

NO

Name

Unit

Parameter

1

Machine width

mm

490

2

Feeding roller

Diameter

mm

57.15

Rotational speed

r/min

0.9

3

Carding roller

Diameter

mm

238.76

Rotational speed

r/min

900

Groove spacing

mm

3.175

Lead

mm

25.40

4

Distance between the cotton feeding table and the spiked roller

mm

0.18~0.23

5

Distance between the dust removal blade and the spiked roller

mm

Inlet: 0.53–0.61

6

Distance between the streamlined blade and the spiked roller

mm

Inlet: 0.15–0.23

7

Adjustment gap of the upper airflow regulating plate

mm

0.2~0.4

8

Motor-spiked roller V-belt model

A1524

9

Motor-fan V-belt model

A1000

10

Overall dimensions (length × width × height)

mm

1019×715×874

11

Machine weight

Kg

280
