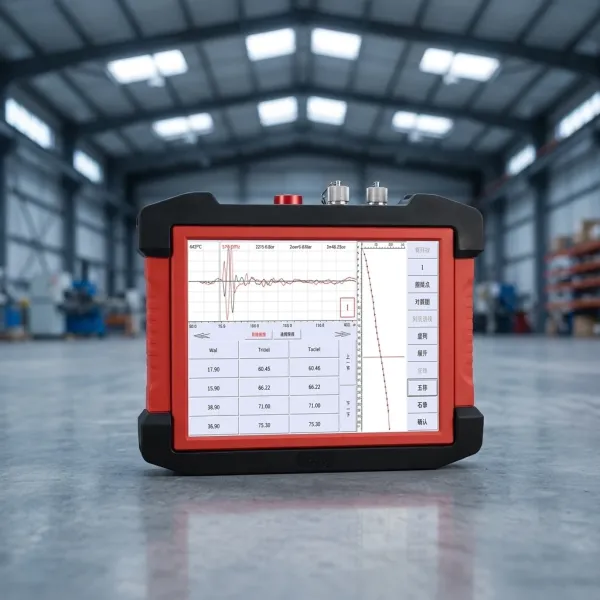

Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument

customized support : OEM, ODM, OBM

power : /

Voltage : 220 V, Other

Type : Wave Velocity Tester

MOQ : 1

Brand Name : LONROY

Place of Origin : Guangdong, China

warranty : 1 Year

Accuracy Class : High Accuracy

Accuracy : /

Protection Class : /

Contact Now

Products Description
Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument

Product Applications Shear wave velocity testing for site investigation Predominant period testing of ground micro-tremors for site investigation Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument Compliant Standards Code for Seismic Design of Buildings (GB 50011-2010) Code for Geotechnical Investigation (GB 50021-2001) Code for Testing of Dynamic Characteristics of Foundation (GB/T 50269-2015) Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument Technical Features 1. High signal-to-noise ratio circuit design ensures easy acquisition of shear wave signals; 2. Large 12.1-inch display provides clear on-site signal visualization; 3. Touchscreen operation on the main unit offers a user-friendly interface and simple operation; 4. Equipped with a lever-type three-component downhole geophone, ensuring excellent borehole wall coupling and high signal quality; 5. Extended sampling duration supports long-term ground micro-tremor testing. Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument
Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument
Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument
Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument
Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument
Specification
Performance Specifications
Control Method
Low-power embedded system; CPU clock speed: 1GHz; Memory: 512MB
Display Mode
12.1-inch true-color LCD screen
Operation Method
Touchscreen operation
Storage Mode
16GB solid-state storage
Operating System
Linux
Sampling Interval
5 ~ 20,000 μs
Record Length
Adjustable in 5 steps: 0.5k, 1k, 2k, 4k, 8k
Magnification
Max. 100,000x
A/D Conversion Precision
Multi-core 16-bit A/D
Number of Channels
1 external trigger channel; 3 sampling channels
Bandwidth
0.1 Hz ~ 4000 Hz
Trigger Mode
Channel trigger / External trigger
Power Supply
AC power; built-in lithium battery (≥6 hours)
Operating Temperature
-20 ~ +55°C
Dimensions
340 × 270 × 70 mm
Weight
3.2 kg
Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument
Standard Configuration
No.
Name
Quantity
Model Specifications
1
Wave Velocity Tester
1
GA-BS10
2
Pointed-tip velocity probe and connecting cable (4-pin plug)
1
Pdi-15m
3
Lever-type downhole 3-component geophone (including counterweight)
1
50mm diameter, yellow zinc-plated Q235 steel housing
4
Cable for lever-type downhole 3-component geophone (including cable reel)
1
60 meters
5
Shear wave (microtremor) 3-in-1 connecting cable
1
SW3.0
6
Wrench
1
7
Main unit communication cable (6-pin plug)
1
3 meters
8
Power charger
1
8.4V 5A
9
Tool kit
1
Includes USB drive, stylus, tape measure, and battery installation wrench
10
Yellow trolley case
1
Model Specifications
Our Advantages
Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument
