BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine

Name: BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine
Brand: LONROY
Price: 320 USD

Quality BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine for sale

power : ---

Brand Name : LONROY

warranty : 1 Year

Accuracy : /

Protection Class : Ip56

Voltage : 220 V

MOQ : 1

Application : Auto Testing

Type : Testing Machine

Price : $320

Impact hammer drop height : 380 ± 5mm

Accuracy Class : High Accuracy

Place of Origin : Guangdong, China

customized support : OEM, ODM, OBM

Contact Now

BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine

Standards

BS 812 NF P18-574

Description

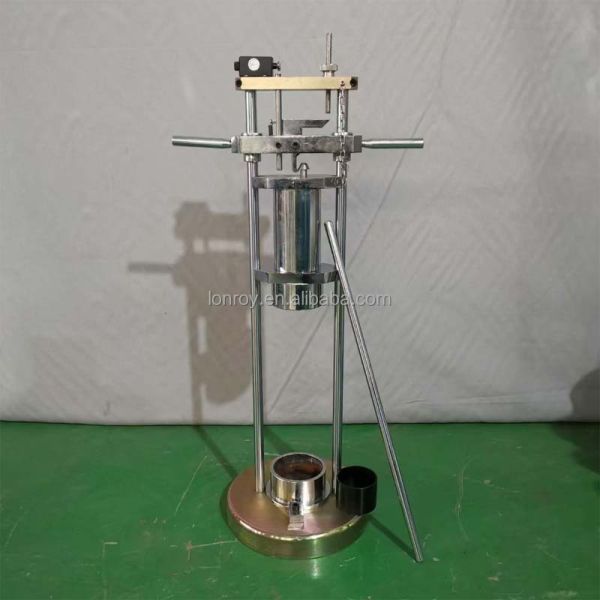

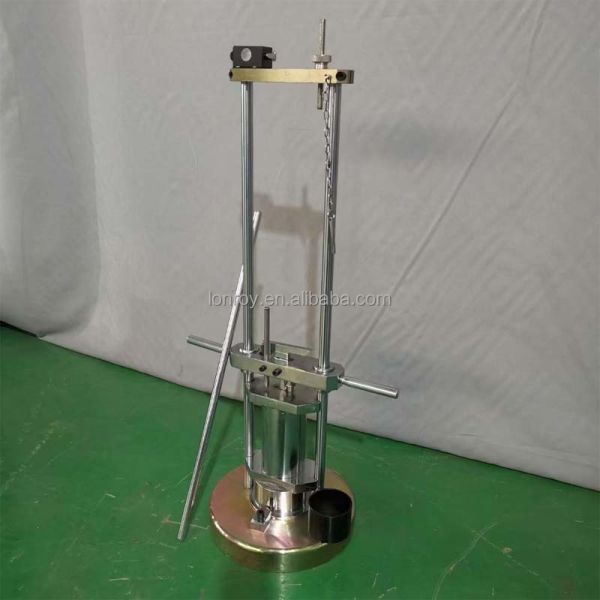

This machine is used to deter-mine the aggregate impact value(AIV) which provides a relative measure of the resistance of an aggregate to sudden shock or impact. The machine is robustly designed and made from corrosion- resistant steel. It is fitted with a counter to check the number of blows delivered to the sample and comes complete with two cylindrical measures (BS and NF) and a tamping rod.

BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine

Technical Specification

Measuring cylinder	inner diameter 76mm, inner height 51mm
A circular steel cylinder	with an inner diameter of 102mm
a wall thickness	of 3mm
The steel rod has a diameter	of 16mm
Impact hammer weight	13.75Kg+0.05Kg, lower cylinder diameter 100mm,
Impact hammer drop height	380 ± 5mm
