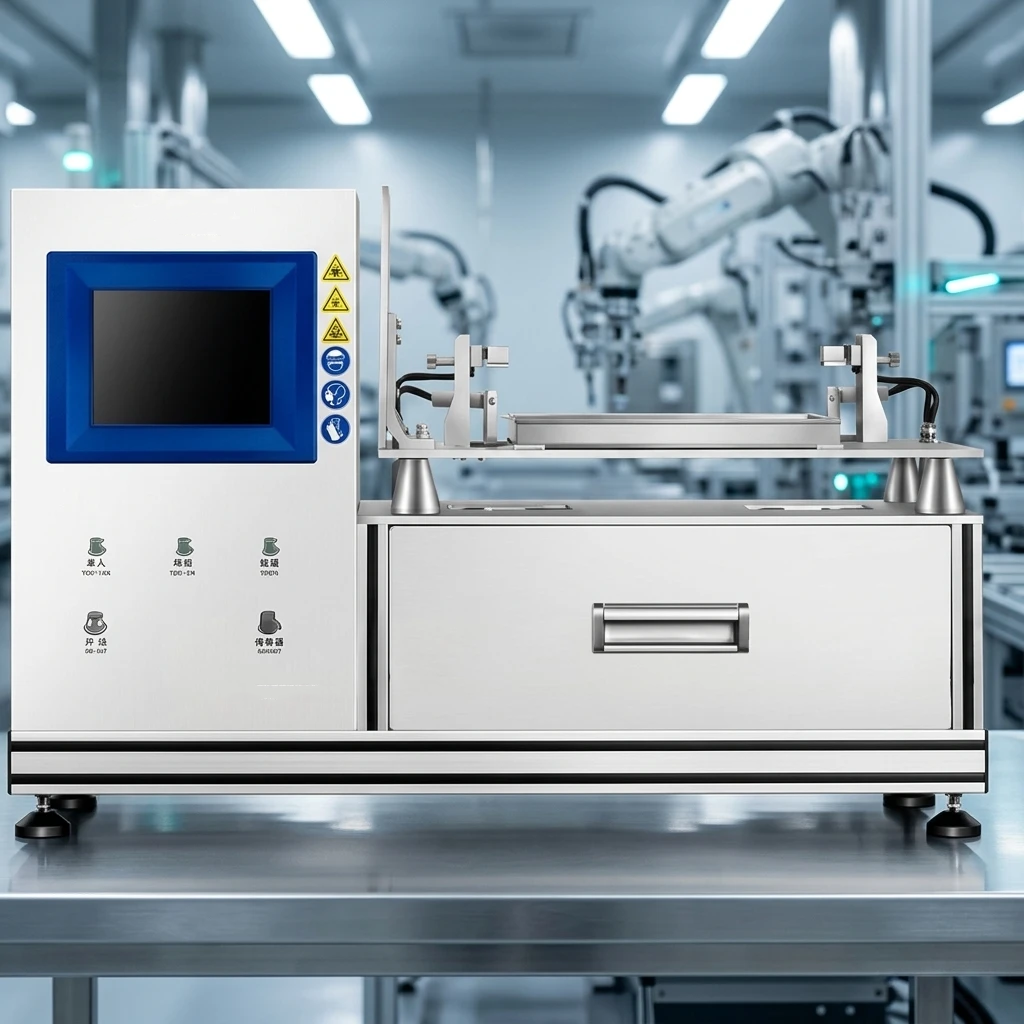

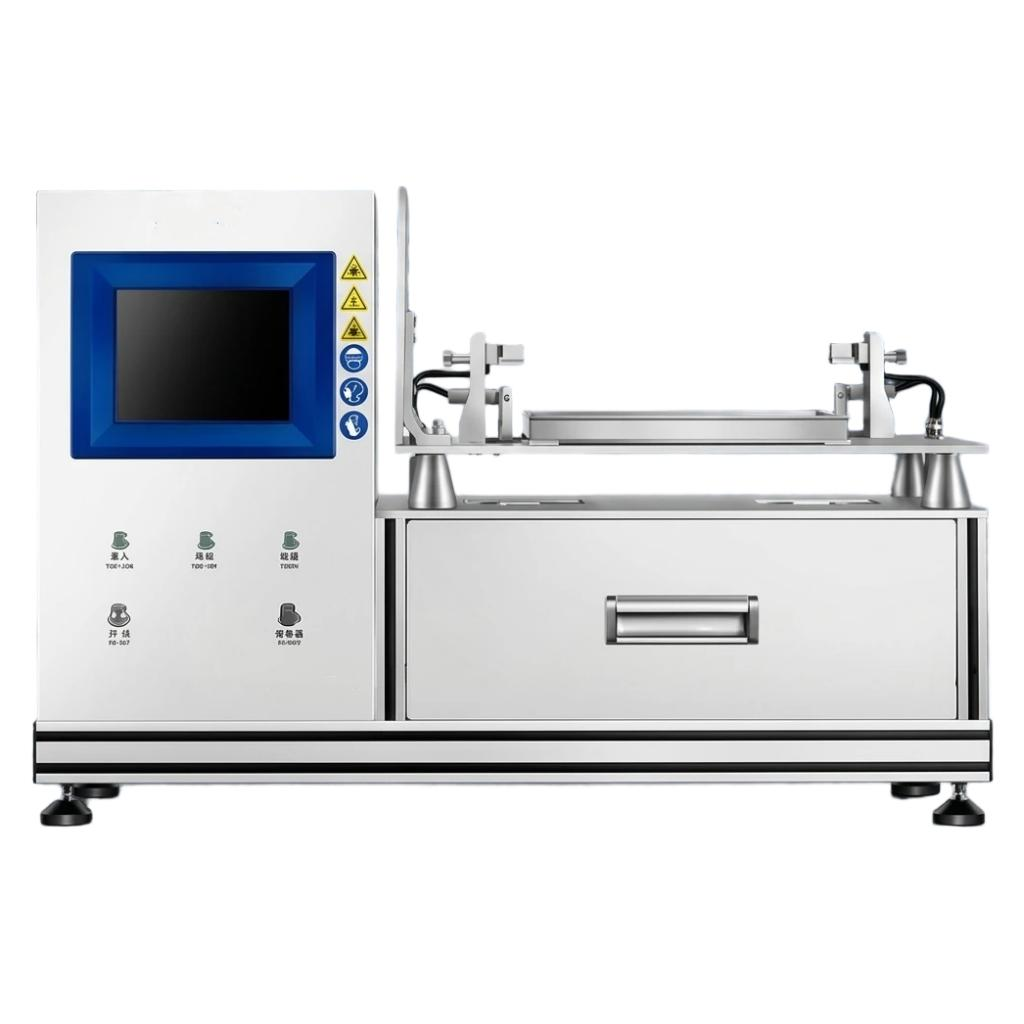

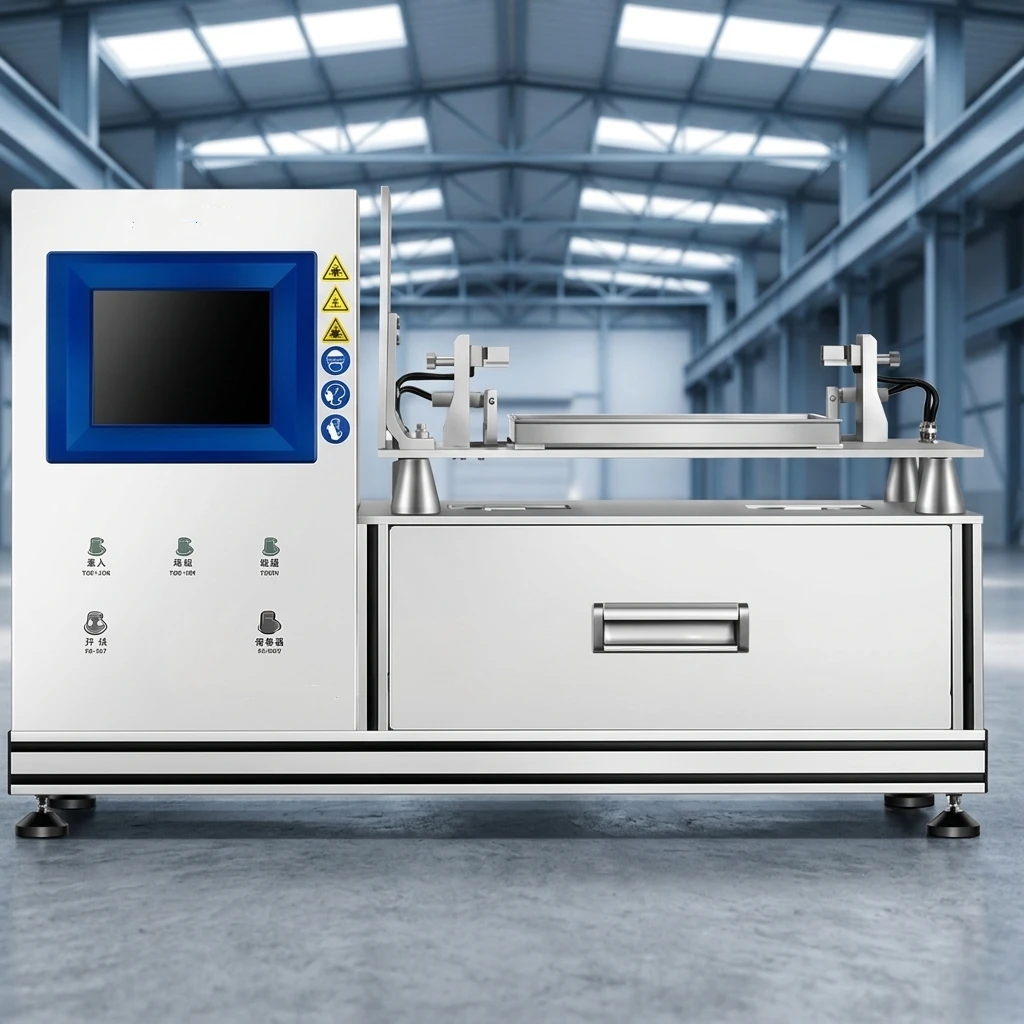

Fully Automatic Detection Small-scale Combustion Tester Remote Control Goods Burning Test Instrument With Camera Lab Equipment

customized support : OEM, ODM, OBM

Protection Class : /

warranty : 1 Year

Type : Testing Machine

Brand Name : LONROY

Accuracy Class : High Accuracy

Accuracy : /

Voltage : 220 V, Other

Place of Origin : Guangdong, China

MOQ : 1

power : /

Contact Now

Products Description
Fully Automatic Detection Small-scale Combustion Tester Remote Control Goods Burning Test Instrument With Camera Lab Equipment

Brief Description The Small-scale Combustion Tester is used to test the reaction of substances to fire. It complies with the domestic standard "Recommendations on the Transport of Dangerous Goods: Manual of Tests and Criteria," Test 3(d): Small-scale burning test (Section 13.7.1), and GB/T 21580-2008 "Test method for small-scale burning of dangerous goods." Fully Automatic Detection Small-scale Combustion Tester Remote Control Goods Burning Test Instrument With Camera Lab Equipment Introduction This testing instrument is designed to evaluate the reaction of substances to fire. It complies with the following standards: UN Recommendations on the Transport of Dangerous Goods: Manual of Tests and Criteria, Test 3(d): Small-scale burning test (Section 13.7.1); GB/T 21580-2008 Dangerous goods—Test method for small-scale burning; GB 30000.2-2013 Rules for classification and labelling of chemicals—Part 2: Explosives; GB 5085.5 Identification standards for hazardous wastes—Identification for reactivity (Section 5.2: Small-scale burning test); and GB 19455-2004 Safety specifications for inspection of hazardous characteristics of civil explosives (Section 6.4.4: Small-scale burning test). Fully Automatic Detection Small-scale Combustion Tester Remote Control Goods Burning Test Instrument With Camera Lab Equipment Features 1) Utilizes an embedded processor and the Windows CE operating system; 2) Features an 8-inch LCD touchscreen for real-time display of test status; 3) Equipped with a camera to record the entire testing process; 4) Supports remote ignition and timing via a wireless remote control; the electronic remote ignition has an effective range of 30 meters, ensuring operator safety; 5) The testing process is fully automated, requiring no manual intervention; supports functions such as parameter setting, data storage, and report viewing; 6) Equipped with a temperature and humidity module to monitor the test environment in real time; 7)Includes a fire-extinguishing cover to allow for the immediate termination of the test. Fully Automatic Detection Small-scale Combustion Tester Remote Control Goods Burning Test Instrument With Camera Lab Equipment
Fully Automatic Detection Small-scale Combustion Tester Remote Control Goods Burning Test Instrument With Camera Lab Equipment
Fully Automatic Detection Small-scale Combustion Tester Remote Control Goods Burning Test Instrument With Camera Lab Equipment
Fully Automatic Detection Small-scale Combustion Tester Remote Control Goods Burning Test Instrument With Camera Lab Equipment
Fully Automatic Detection Small-scale Combustion Tester Remote Control Goods Burning Test Instrument With Camera Lab Equipment
Specification
Technical Parameters
Technical Parameter Item
Specification
Operating environment
(-5 to 45)°C, <95% RH
Ignition method
Electronic remote ignition
Timer display resolution
0.1 s
Ambient temperature measurement range
(-10 to +60)°C
Ambient temperature measurement accuracy
±0.5°C
Ambient humidity measurement range
(5 to 95)% RH
Ambient humidity measurement accuracy
±5.0% RH
Test area dimensions
30 cm × 30 cm
Camera resolution
300,000 pixels
Wireless camera transmission range
100 m (line-of-sight/no wall penetration)
Fire-extinguishing cover dimensions
32 cm × 32 cm × 5 cm
Our Advantages
Fully Automatic Detection Small-scale Combustion Tester Remote Control Goods Burning Test Instrument With Camera Lab Equipment
