EN12201 Pneumatic Drop Hammer Impact Testing Machine Falling Weight Impact Test Equipment Secondary Impact Prevention Tester

Name: EN12201 Pneumatic Drop Hammer Impact Testing Machine Falling Weight Impact Test Equipment Secondary Impact Prevention Tester
Brand: LONROY
Price: 1 USD

Quality EN12201 Pneumatic Drop Hammer Impact Testing Machine Falling Weight Impact Test Equipment Secondary Impact Prevention Tester for sale

Accuracy : /

Voltage : 220 V

customized support : OEM, ODM, OBM

Type : Testing Machine

Accuracy Class : High Accuracy

Brand Name : LONROY

Place of Origin : Guangdong, China

warranty : 1 Year

MOQ : 1

Protection Class : Ip56

Application : Auto Testing

power : ---

Power Supply : 220V 50Hz

Contact Now

EN12201 Drop Hammer Impact Testing Machine Falling Weight Impact Resistance Test Equipment Striking Impact Resistance Tester

Product Overview

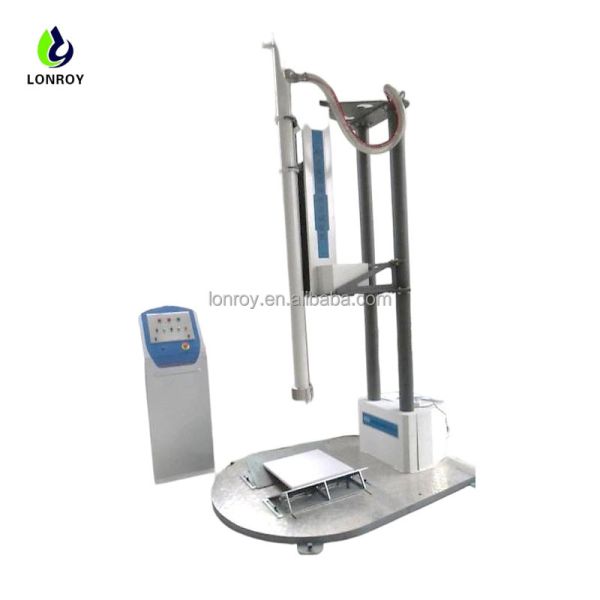

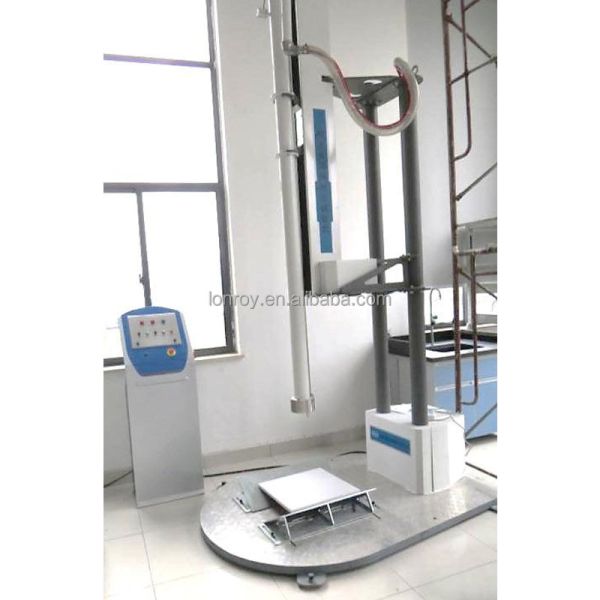

The LONROY impact testing machine is specifically designed for impact resistance testing and is an essential specialized testing equipment for inspection institutions and production units. It mainly consists of a workbench, a secondary impact prevention mechanism, a hammer. The customized model designed by LONROY can conduct impact tests on specimens with a diameter of less than 500mm.

The machine can run horizontally automatically, used for automatically aligning the sample and adjusting the position. The impact part can also move up and down to ensure the impact state. Both horizontal and longitudinal movements are automatically controlled. The drop hammer and the secondary impact prevention mechanism adopt an air-pneumatic system.

Execution standard

EN 12201-3:2024

EN12201 Drop Hammer Impact Testing Machine Falling Weight Impact Resistance Test Equipment Striking Impact Resistance Tester

Technical Specification

1. Application Scope	φ600 (φ800)
2. Drop Hammer Impact Height	2.5 m
3. Drop Hammer Shape	d90
4. Drop Hammer Weight	1 kg
5. Hammer Lifting Device	Vacuum adsorption (or pneumatic)
6. Secondary Impact Prevention Device	Vacuum adsorption (or pneumatic)
7. Power Supply	220V 50Hz
