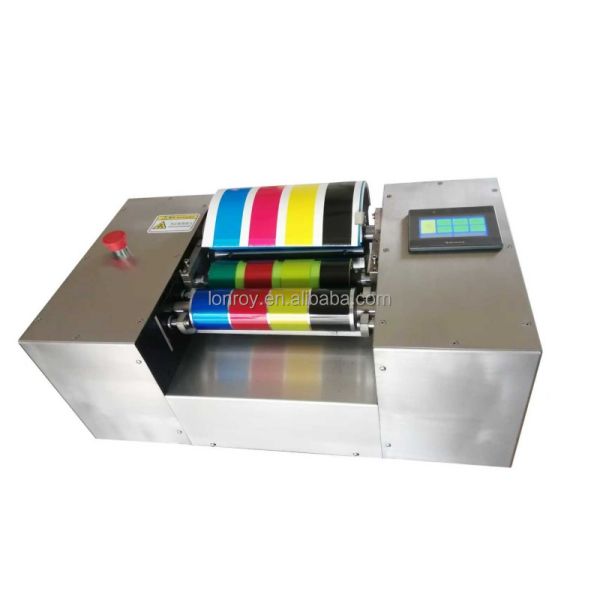

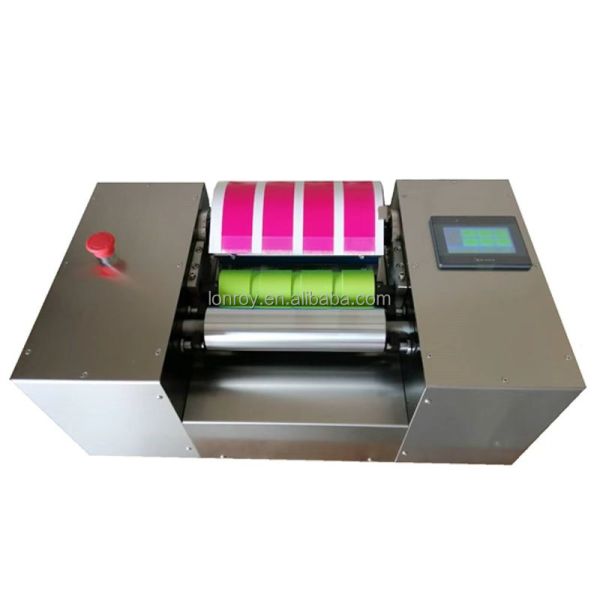

Automatic Color Mixing Offset Proofer Printing Ink Test Equipment Flexo Gravure Ink Printing Proofer

Automatic Color Mixing Offset Proofer Automatic Printing Ink Test Equipment Automatic Flexo Gravure Ink Printing Proofer

Use

The Printing Ink Prooferis designed to test the special color before printed in printing machine. The color matching work is completely changed into a work before printing, thus it can greatly reduced the production time of printing machine and reduce the consumption of papers, ink, rag, car washing water, human labor power and electricity consumption. What's more, it can improve the stability of the special color.

Printing Ink Proofer SPEC:

Input Voltage:220v, 50/60Hz;

Power:250w;

Ink Distributing Method:Automatic ink distributing with adjustable distributing time;

Printing Pressure:The printing pressure can be precisely adjusted according to the thickness of the substrate from outside;

Ink Distributing and Printing Speed:The ink distributing and printing speed can be adjusted according to the properties of printing ink and substrate;

Dimension:525*430*280mm;

Total Width of the Printing Roller: 225mm(the maximum color spreading area is 225*210mm);

Net Weight:75kg;

Application:printing industry, printing ink industry, paper making industry, training centers and

R&D centers.

Automatic Color Mixing Offset Proofer Automatic Printing Ink Test Equipment Automatic Flexo Gravure Ink Printing Proofer

Applicable Printing Inks:the normal inks (non-water-based) or UV curing inks (non-water-based) for surface offset printing and typographic brand printing.

Ink Proofer Features:

1) Four inks may be proofed simultaneously for comparison

2) Excellent repeatability.

3) Automatic ink distributing.

4) Complete inking/proofing/cleaning cycle only 3-5 minutes.

5) Multiple proofs easily obtained using any substrate.

6) Reduces press down-time.

7) Repeatable proofing when the proofer equipped with ink injector.

8) Can print on different materials, including normal paper, coated paper, tinned plate, matte paper, gray paperboard as well as film.

9) Safe and simple operation.

10) Easy cleaning and maintenance.

Automatic Color Mixing Offset Proofer Automatic Printing Ink Test Equipment Automatic Flexo Gravure Ink Printing Proofer

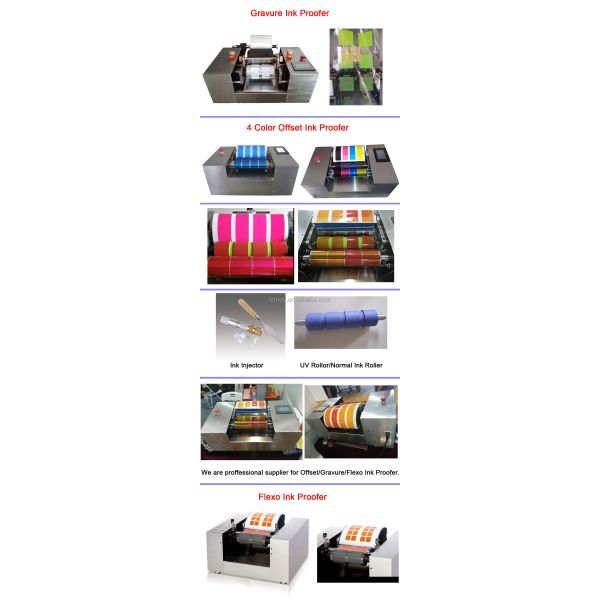

◊Spot Color Proofing

The multi-stage proofer can print color strips of different colors at the same time, or print a same ink color strip in different ink thickness. It can also print new and previous ink on the same printing material to make comparison, and provide highly effective color comparison.

◊Four Ink Can Be Proofed Simultaneously for Comparison

Luster, hue and color concentration can be checked to ensure a high-quality of printing.

◊Provide the Customer with Special Color Approving before Printing

Print simple color strips for the customer to approve or archive before printing.

◊Color Change Caused by Wetness and Dryness

When the special ink color strips printed by the proofer, the hue of special color can be found after drying . For example, the phenomenon that purple color and deep blue color will turn to red after dryin gcan be eliminated before printing.

◊Worked with Ink Injector

Used along with the ink injector, the used quantity of the special color ink can be anticipated, thus treatly reduce the remnant ink wastage and store accumulation.

◊Digital Management

Work with spectrodensitometer to check color and data value of color strip(LAB value) can be measurable.
