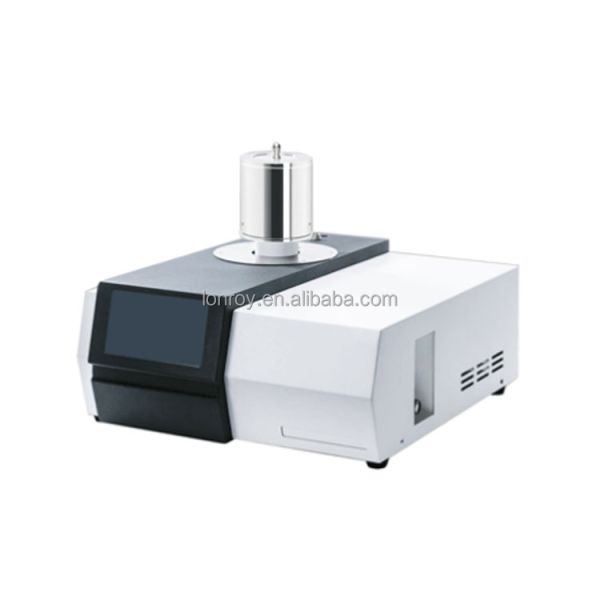

Differential thermal analysis (DTA) is a technique to measure the temperature difference and temperature relationship between a substance and its reference substance under programmed temperature control.The dTA curve describes the temperature (T) between the sample and the reference as a function of temperature or time.In DTA tests, sample temperature changes are caused by endothermic or exothermic effects of phase transitions or reactions.Such as: phase transformation, melting, crystal structure transformation, boiling, sublimation, evaporation, dehydrogenation, fracture or decomposition reactions, oxidation or reduction reactions, lattice structure destruction and other chemical reactions.
Instrument features:
1. The main control chip of the instrument adopts ARM controller, with faster processing speed.
2. USB two-way communication, convenient operation.
3. 7 inch full color LCD touch screen, friendly interface.
4. Adopt nickel-chromium alloy sensor.
Technical parameters:
1. Temperature range: room temperature ~1150℃
2. Range: 0 ~ ± 600MW
3. DTA accuracy: 0.01MW
4. Heating rate: 0.1 ~ 100℃/min
5 temperature resolution: 0.01℃
6 temperature accuracy: ±0.1℃
7. Temperature repeatability: ±0.1℃
8. Temperature control: heating up: program control can be adjusted according to the needs of the parameters
Constant temperature: program control constant temperature time arbitrary setting
9. Furnace body structure: the furnace body adopts the upper cover structure, instead of the traditional lifting furnace body, high precision, easy to operate
10. Atmosphere control: internal program automatically switch
11. Data interface: standard USB interface with data cable and operating software
12. Display mode: 24bit color 7 inch LCD touch screen display
13. Parameter standard: equipped with standard materials, with a key calibration function, users can calibrate the temperature by themselves
14. Baseline adjustment: Users can adjust the baseline based on the slope and intercept of the baseline
