Atomic Absorption Spectrophotometer/Spectrometer for Elements Detection/Metal Analyzer Machine (Single Flame) ICP ICP Em

Name: Atomic Absorption SpectrophotometerSpectrometer for Elements DetectionMetal Analyzer Machine Single Flame ICP ICP Em
Brand: LONROY
Price: 1 USD

Brand Name : LONROY

Place of Origin : Guangdong, China

customized support : OEM, ODM, OBM

warranty : 1 year

Model Number : LR-8452

Product name : Atomic Absorption Spectrophotometer

MOQ : 1

Contact Now

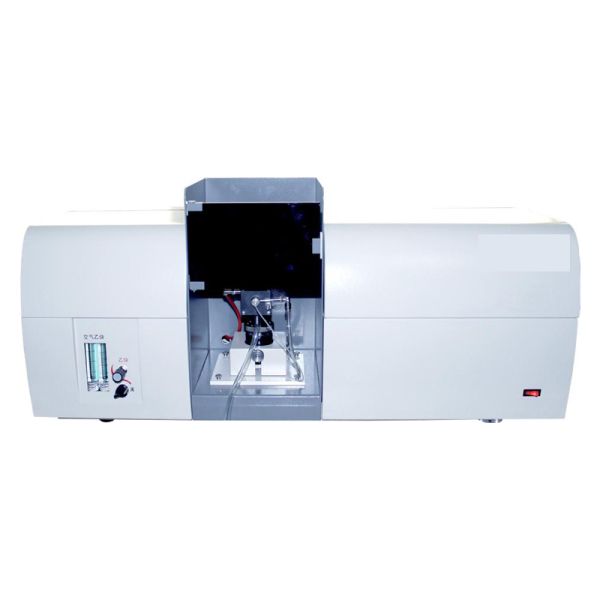

Atomic Absorption Spectrophotometer/Spectrometer for elements detection/Metal Analyzer Machine (Single Flame)

I. Product Introduction

The LR-8452B atomic absorption spectrophotometer has high analysis accuracy and comprehensive humanized design, which can fully meet the specific needs of different customers. According to different analysis requirements, graphite furnace control, automatic sampler, hydride generator and so on can be selected.

Atomic Absorption Spectrophotometer/Spectrometer for elements detection/Metal Analyzer Machine (Single Flame)

II.Performance characteristics

1, four lights or six lights optional

Automatic 3D switching, energy balance, simultaneous preheating of multiple lamp positions to save waiting time, can choose deuterium lamp button background and high-performance element lamp.

2, automatic optimization of instrument Settings

Instrument setting automatic optimization memory function, one key to complete scanning peak search.

3, data report multi-format save and print out

Convenient data query and comparison.

4. Software design makes operation easier

The instrument software adopts single-interface multi-function window design, real-time monitoring of data changes, supports mainstream Windows operating system, supports remote control and calibration,

Chinese/English versions are optional.

5, advanced and reliable multiple security protection system

Automatic detection, alarm, such as insufficient pressure, gas leakage, flameout and other abnormal conditions.

6. Expand and combine functions

Hydride system and graphite furnace system and combined functions.

7, with automatic online detection function

Atomic Absorption Spectrophotometer/Spectrometer for elements detection/Metal Analyzer Machine (Single Flame)

III.Application field

It can be widely used in geology, metallurgy, medicine, chemical industry, petroleum, agriculture, environmental protection, commodity inspection and other industries. In recent years, the application of analysis of trace and trace elements has gradually penetrated from inorganic chemistry to organic chemistry.

Technical parameter

Host machine
Power Supply	AC 220 V/50 Hz
Power	150 W
Operating temperature	10℃ ~35℃
Working humidity	≤ 80%
Dimensions	1000 mm (L) x 400 mm (W) x 470 mm (H)
Weight	70 kg
Optical system
Detector	Japan Hamamatsu photomultiplier tube
Wavelength range	185 nm~900 nm
Grating line density	1800 pieces
Monochromator	Czerny-Turner enhanced type
The spectrum bandwidth	The spectrum bandwidth is 0.2nm, 0.4nm, 1.0nm, 2.0nm multi-grade automatic switching
Wavelength indication error	≤ ±0.1 nm
Wavelength repeatability	≤ ±0.025 nm
Baseline drift	0.003 ABS/30min(static) 0.005 ABS/15min(dynamic)
Resolution	Cu 324.7nm wavelength, 0.2nm bandwidth, 0.2nm ± 0.01nm half-width
Light source system
Lamp holder	Turret type automatic switching light frame
Lamp power supply mode	400 Hz, 1/4 duty cycle pulse lit
Lamp current adjustment range	(0~10) mA (average current) software adjustment
Atomization system
Characteristic concentration	(Cu)0.025 μg/mL /1%
The detection limit	(Cu)0.006 μg/mL
Burner	0.5 mm×100 mm all-titanium burner
Repeatability	RSD ≤ 0.5%
atomizer	Metal sleeve high efficiency glass sprayer
Atomizing chamber	Corrosion-resistant all-plastic atomization chamber
Security protection	With a variety of automatic safety protection functions, acetylene leakage alarm, shutdown system
Analytical method
Measuring method	Air-acetylene flame method
Concentration calculation method	The linear regression method automatically fits the working curve and calculates the result automatically
Repeated measurement times	1~99 times, automatically calculate the average value, content, standard deviation and relative standard deviation
Result output	Multi-format data saving and printing
Communication interface	Standard RS232, USB expansion interface
Software environment	Software environment Windows XP/Vista/Windows7 operating system, Chinese professional software
Function expansion	Hydride system and graphite furnace system
