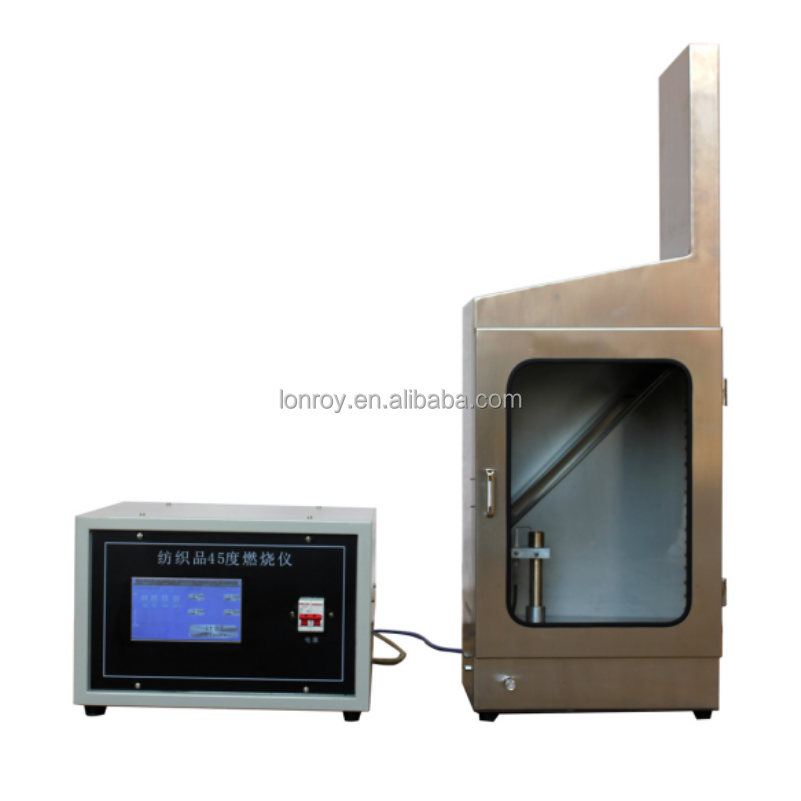

Fabric Flammability Test Machine Flame Testing Machine Textiles 45 Degree Flammability test chamber

Application

It is developed according to the technical indicators stipulated in the national standard 14645-2014. It is suitable for testing and evaluating the combustion performance of all kinds of textiles in accordance with the standard under the controlled conditions in the laboratory and the surface of samples placed at 45° tilt under the action of flame.

Fabric Flammability Test Machine Flame Testing Machine Textiles 45 Degree Flammability test chamber

Technical parameters

1. Ambient temperature: 10℃ ~ 30℃

2. Relative humidity: 15%-85%

3. Supply voltage and power: 220V± 10%, 100W

4. Gas source: liquefied petroleum gas, the third party test results and arbitration test must be provided with industrial propane or butane gas standard requirements. Note: Air source and link head are provided by user

5 instrument appearance size: controller: 420mm*350mm290mm* combustion chamber 353mm*260mm*970mm.

6. The combustion chamber is made of stainless steel material resistant to heat and smoke erosion, and the front of the box is provided with an observation door made of transparent material resistant to heat.

7. Touch screen related parameters:

a. Size: 7 "effective display size 15.5cm long 8.6cm wide;

b. Resolution: 800*480

c. Communication interface RS232, 3.3V CMOS or TTL, serial port

d. Storage capacity :1G

e. Pure hardware FPGA driver display, "zero" startup time, power on to run

f. Adopt M3+FPGA architecture, M3 is responsible for instruction parsing, and FPGA focuses on TFT display

g. The main controllers use low-power processors and automatically enter the energy-saving mode

8. The burner applies flame to the pattern 30s:

9. Pattern tilt 45°±3°.

10. Style holder (sample clip) size: length 490mm wide 320mm

11. Sample size: 330*230mm

Fabric Flammability Test Machine Flame Testing Machine Textiles 45 Degree Flammability test chamber

Applicable standard
