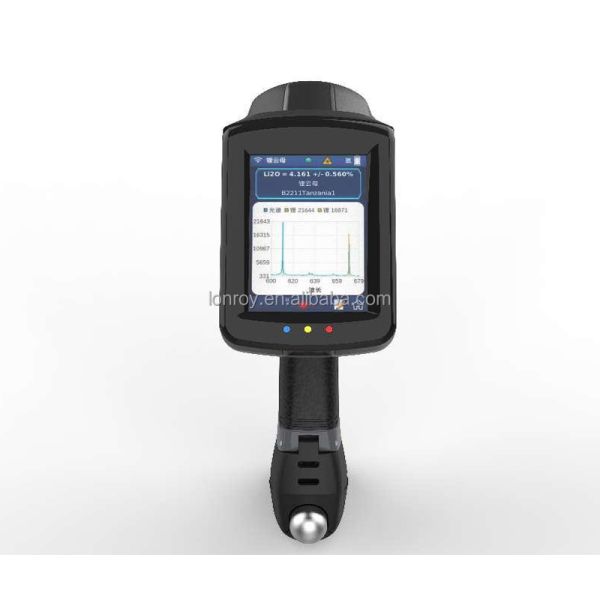

LR-L502 LIBS Lithium Content Spectral Analysis Machine/Lithium Ore spectrometer Tester
Technical introduction
Handheld (portable) laser-induced breakdown spectrometer can be used for the grade identification and quantitative analysis of the elements contained in iron, aluminum, copper, nickel and other alloy materials, and extended to the measurement of non-metallic materials, especially the measurement of lithium oxide in lithium ores, and the accurate measurement of lithium content in lithium battery cathode materials.
LR-L502 LIBS Lithium Content Spectral Analysis Machine/Lithium Ore spectrometer Tester
Equipment introduction 1, handheld laser induced breakdown spectrometer:
Handheld laser-induced breakdown spectrometers use Class 3B safe laser technology based on high energy pulses, completely free of the ionizing radiation hazards of fluorescence instruments (XRF). The laser is no longer collimated after the convergence of the optical path, and it has no harm to the eyes during normal use. Reliable pulsed laser life is very long, generally up to more than a million times of service life.
The handheld laser-induced breakdown spectrometer features a fully enclosed housing design (IP54) that is water and dust resistant. High strength body a large number of aluminum alloy material, strong wear and good heat dissipation effect, the instrument without any fragile and vulnerable parts, more convenient than traditional ICP detection, users only need very low maintenance costs can be used for a long time.
The handheld LASer-induced breakdown spectrometer weighs only 1.8 kg and can be easily used with one hand. It is equipped with a high-capacity lithium battery and a miniature disposable argon cylinder, which can directly qualitatively measure lithium in ore.
Ideal for field exploration operations, high-capacity lithium battery packs are more sustainable throughout the day.
Portable laser Induced Breakdown Spectrometer:
The portable laser induced breakdown spectrometer is suitable for secondary development and use in scientific research institutes.
With professional software, it can establish its own algorithm curve after spectral analysis of various ores.
LR-L502 LIBS Lithium Content Spectral Analysis Machine/Lithium Ore spectrometer Tester
Host and accessory configuration list (standard configuration)
1.LIBS host *1
2. Battery *3 sets
3.0.25L Argon cylinders: 2 sets
4. Special pressure reducing valve: 1 set
5. Disposable cylinders: 40 pieces
6. Bluetooth printer: 1 set
7. One set of portable battery charger and one set of desktop charger
8. Standard sample: one set
9. Professional protective box: one set
| LR-L502 LIBS Lithium Content Spectral Analysis Machine/Lithium Ore spectrometer Tester |
